Ecovent

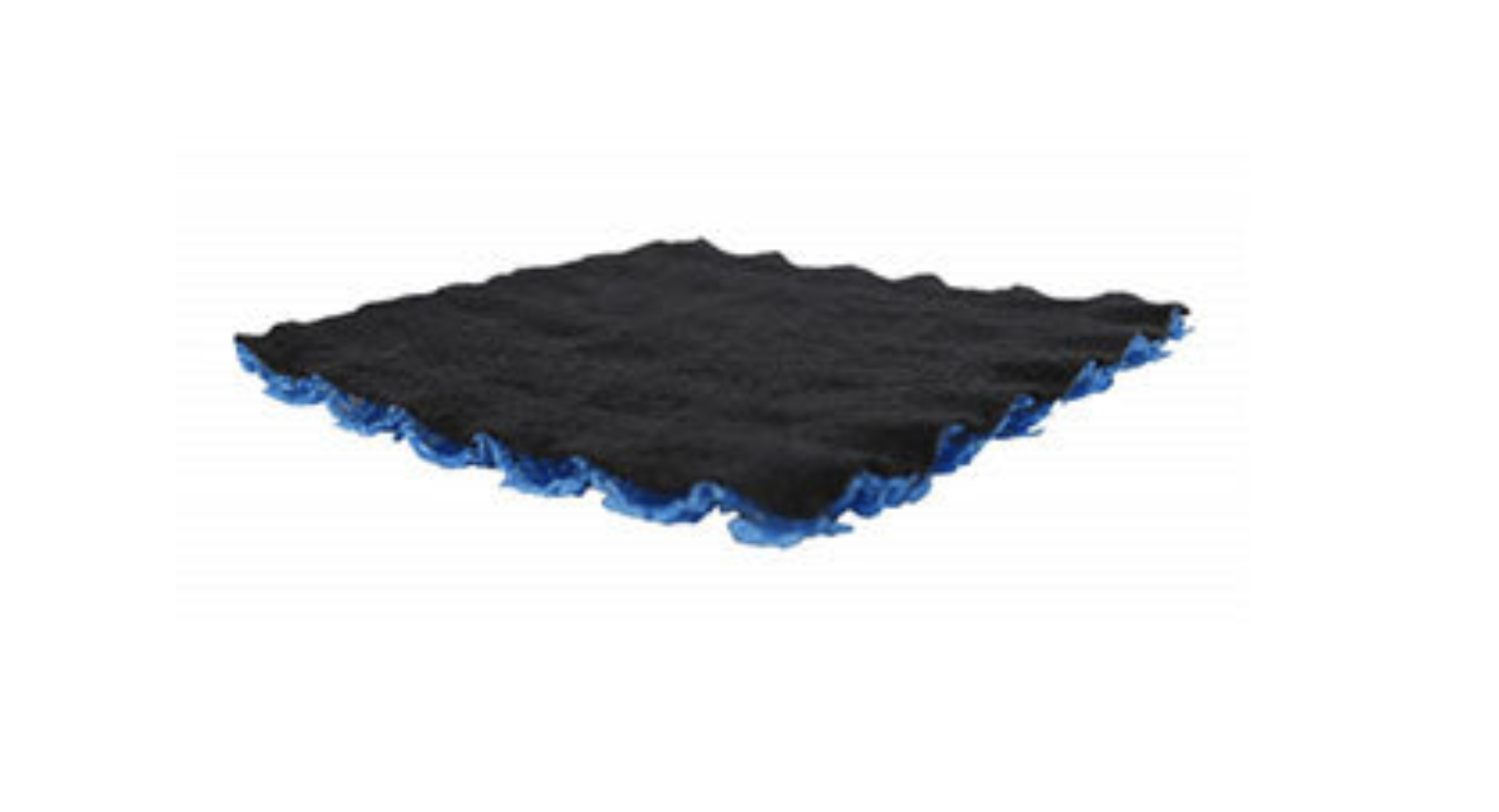

Ecovent is a geometric patterned core drainage mat designed to eliminate hydrostatic pressure on vegetated roofs, foundation walls, retaining walls, planter and plaza decks while providing a protection fabric for the waterproof membrane. Ecovent is composed from an extruded polymer matrix of intertwined monofilaments that are heat-welded together forming a durable structure. One side of the mat is lined with a non-woven geotextile filter fabric designed to keep soil and concrete away from the wall, deck and core.

LENGTH (FT) 100

ROLL WEIGHT (LB) 57

DIAMETER (IN) 27

CORE WIDTH (IN) 48

AREA (ft²) 399.6
