Covered from the roof down to the garden

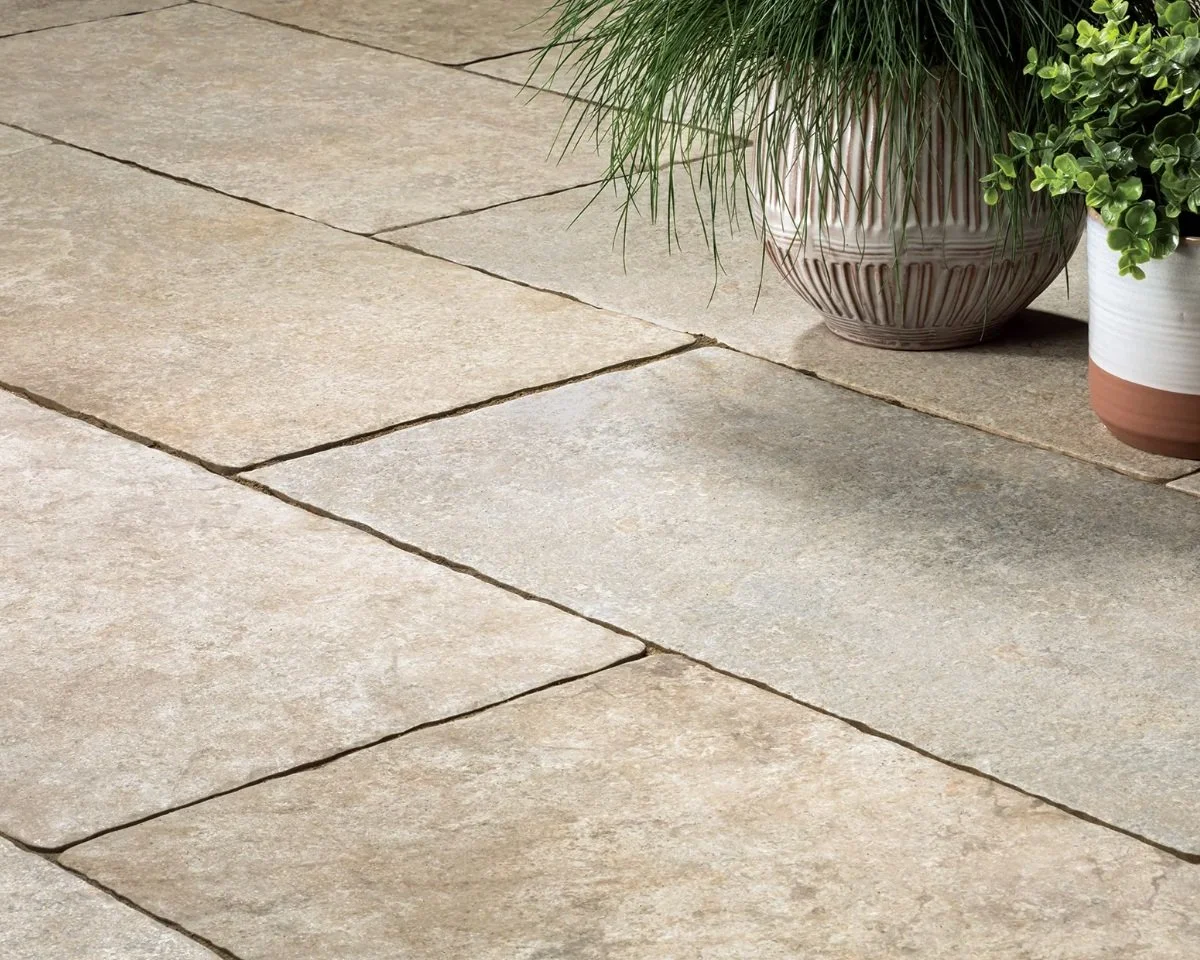

The Dynamex™ Rise-It system from Redwood Plastics and Rubber supports ceramic and porcelain pavers on roof decks, balconies and patios. The pads carry the load of the pavers and foot traffic while reducing vibration and noise, leave a drainage path beneath the surface, and protect the roofing membrane or moisture barrier below. They can also level pavers over broken sidewalks, sand, gravel or uneven concrete. Made from 100% recycled material.

• Sold by the box of 100 pads; 30 boxes (3,000 pads) per pallet

• 1/2" with 3mm spacer: for 24" x 24" and larger pavers; the 3mm spacer tabs create a joint that mimics a standard grout line

• 1/2" flat top: for 24" x 48" and larger pavers; gives extra support and noise reduction

• 1/8" with 3mm spacer: a low-profile, cost-effective pad for low-height installations

• A box of 100 typically covers about 100 sq ft of 24" x 24" pavers

• Pair with Rise-It shims to level the surface and work with drainage slope

Installation Guide

Data Sheet

Dynamex™ Rise-It shims stack under Rise-It pedestals to level pavers and to compensate for the drainage slope of a roof or deck. Made from 100% recycled material.

• 1/16" shim: sold by the box of 400
• 1/8" shim: sold by the box of 200
• Typically ordered alongside pallets of 1/2" Rise-It pads

Area of use

- On roof areas up to approx. 5° roof pitch

- To support the guidance of excess water into drainage and

substrate layers with flow lengths over 6-10 m

- Can be combined with the combi inspection chamber plus, maxi

control chamber, triangle collection channel type TSK, and gravel

retainers via pre-cut insertion openings to be broken out

Specific properties

- Targeted, resistance-free drainage of excess water

- The height of the system structure above remains unaffected,

thus greater space for roots

- No floating of the profiles as with round pipes.

- Simple and variable laying

- Rapid guidance of excess water with siphonic drainage

Data Sheet

Imperial Conversions

Keene root barrier is a polymeric sheet that stops root penetration and redirects roots into a horizontal growth plane, protecting the waterproofing membrane below green roofs and planters and helping lock in vegetation against wind uplift.

• Roll size: 53" x 175' (773 sq ft)

• Turn up at least 4" above finish grade at perimeters and penetrations

• Service temperature -70°F to 180°F

• Sold by the roll

Options

• RB-20 – 20 mil; lap seams 6" min. – 76 lb/roll

• RB-30 – 30 mil; lap seams 12" min., tape with KeeneFlash 300 – approx. 114 lb/roll

Advised to purchase Keene Flash Tape with the Root Barrier.

Technical data sheets: RB-20 | RB-30

KeeneFlash™ 300 is a multipurpose butyl flashing and repair tape with a tough, flexible film backing. In green roof assemblies it is used to tape root barrier seams; it also seals windows, doors, pipe penetrations and sheathing seams against air and water.

• 6" wide; 8 rolls per box (100' rolls); 27 boxes per pallet

• Aggressive butyl adhesive; self-healing after puncture

• Conforms around edges, corners and transitions

• Service temperature -30°F to 200°F

• Easy-release clear PET liner

KeeneFlash 300 Data Sheet

N-Vire™ Mat 040-1 and 075-1 are multi-functional products comprised of a structured strand core and filter-fabric that can either assist with root entanglement & soil reinforcement or act as a moderate or high-flow drainage product in your green roof assembly or landscaping application.

When used with the filament-side up, the product assists with root entanglement and soil reinforcement, allowing roots to grow into and become tangled with the 3-dimensional polymeric core. This feature facilitates the easy transportation of vegetation from one place to another. Alternatively, when installed with the fabric side up, the mat creates a 0.40″ to 0.75″ thick air-space, enabling incidental moisture to drain away and ventilate out effectively.”

• N-Vire™ Mat 040-1: 4’X100’ Part # 01-X-0040 | Thickness: 0.40 Inches / 10.2 mm

• N-Vire™ Mat 075-1: 4’X50’ Part # 01-X-0041 | Thickness: 0.75 Inches / 19 mm

Mat 040 Data Sheet

Mat 075 Data Sheet

Aqua Balance Mat is a needle-punched, mechanically bonded water-retention felt made from 100% recycled fibers. A proprietary blend of low- and mid-denier fibers gives it strong capillary action, so it absorbs water quickly and holds it for green roof vegetation while helping reduce stormwater runoff.

• Roll size: 4' x 75' (300 sq ft); charcoal

• Water capacity: 1.7 lb/ft²

• Dry weight: 1,464 g/m²

• Self-extinguishing; mildew, bacteria and chemical resistant

• Sold by the roll

Aqua Balance Mat Data Sheet

TriDent® Dimple Drain is a two-layer drainage composite: a high-strength, moisture-impermeable dimpled polystyrene (HIPS) sheet with a non-woven polypropylene filter fabric bonded to it. It relieves hydrostatic pressure while keeping silt, soil and concrete out of the drainage channel. For foundations, under-slab drainage, plaza decks, commercial planters and green roofs.

• Sold by the roll; 48" x 50' (200 sq ft), 36 lb/roll

• Lightweight and easy to handle

Options

• TriDent DD 025 – 1/4" core, 10,000 psf compressive strength, 12 gpm/ft flow – 18 rolls/pallet

• TriDent DD 050 – 1/2" core, 15,000 psf compressive strength, 21 gpm/ft flow – 12 rolls/pallet

Technical data sheets: DD 025 | DD 050
